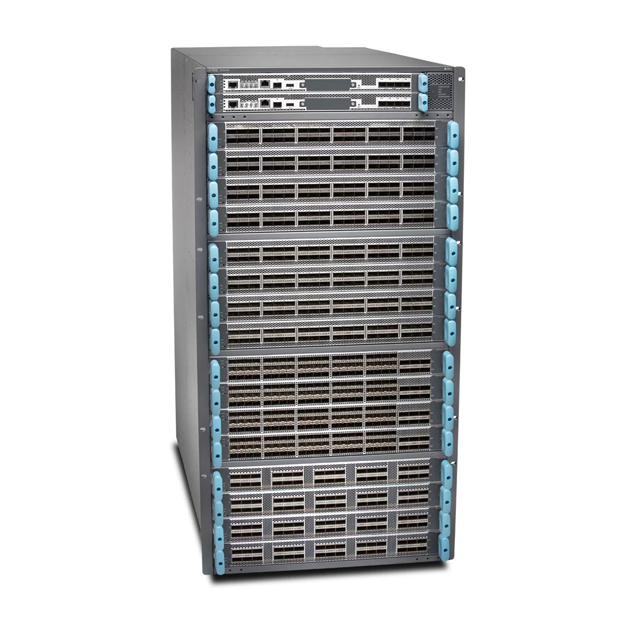

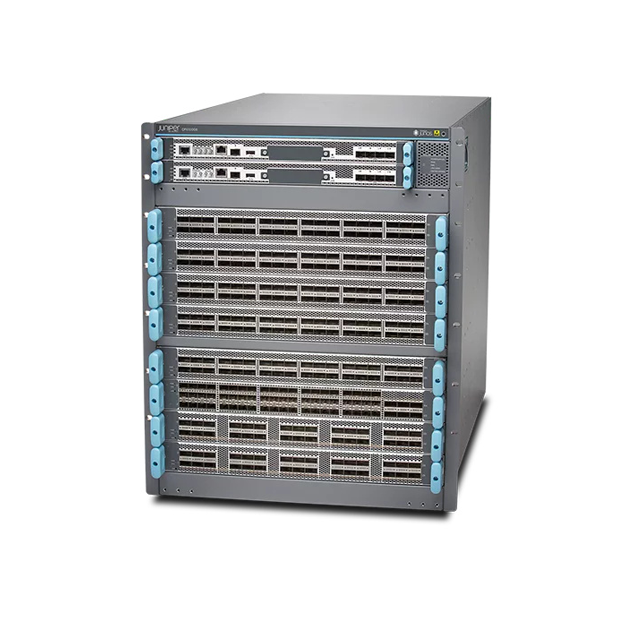

QFX10008 and QFX10016 Switches
Key Features
Use Case: Data Center Fabric Spine
Chassis Options:
● QFX10008: 13 U chassis, up to 8 line cards
● QFX10016: 21 U chassis, up to 16 line cards
Port Density:
● QFX10000-30C-M: 30 x 100/40GbE, MACsec-enabled
● QFX10000-30C: 30 x 100/40GbE
● QFX10000-36Q: 36 x 40GbE or 12 x 100GbE
● QFX10000-60S-6Q: 60 x 1/10GbE with 6 x 40GbE or 2 x 100GbE
● QFX10000-12C-DWDM: 6 x 200Gbps
Throughput: Up to 96 Tbps (bidirectional)
Deep Buffers: 100 ms per port
Precision Time Protocol (PTP)
Features + Benefits
High Throughput
The switches deliver up to 96 Tbps bidirectional wire-speed switching with low latency and jitter, along with full Layer 2 and Layer 3 performance.
Architectural Flexibility
Support for IP fabrics and EVPN-VXLAN overlays for Layer 2 and Layer 3 networks delivers the flexibility you need to quickly deploy and support new services.
MACsec Protection
MACsec capability at speeds up to 100GbE provides a high-performance method of encrypting traffic in the data center.
Deep Buffers
100 ms per-port buffers absorb network traffic spikes to ensure performance at scale. The switches support up to 12GB of total packet buffer.
Fabric Management
Intent-based Juniper Apstra software provides full Day 0 through Day 2+ capabilities for IP/EVPN fabrics with closed-loop assurance in the data center.
